Marca	DLink
Modelo	DGS-1210-52/E
Interfaz	- 48 x Puertos 10/100/1000BASE-TX - 4 x Puertos SFP
Rendimiento	- Capacidad del switch: 104 Gbps - 64-Byte Packet Forwarding Rate: 77.4 Mpps - MAC Address Table Size: 16K - Packet Buffer: 3 MB por dispositivo - Jumbo Frame: hasta 9,216 Bytes
Características	Funcionalidades L2 - MAC Address Table: 16K entries - IGMP Snooping: IGMP v1/v2 Snooping Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier - Loopback Detection - 802.3ad Link Aggregation: Maximum of 26 groups/8 ports per group - LLDP - LLDP-MED - Jumbo Frame: Up to 9,216 bytes - Spanning Tree Protocol: 802.1D STP 802.1w RSTP - Flow Control: 802.3x Flow Control HOL Blocking Prevention - Port Mirroring: One-to-One Many-to-One Supports Mirroring for Tx/Rx/Both - Multicast Filtering: Forwards all unregistered groups Filters all unregistered groups - Configurable MDI/MDIX: MLD snooping v1/v2 (256 groups) VLAN - 802.1Q - VLAN Group Max. 256 static VLAN groups - Configurable VID from 1 - 4094 - Asymmetric VLAN - Auto Voice VLAN Max. 10 user-defined OUI Max. 8 default OUI - Auto Surveillance VLAN Calidad de servicios (QoS) - 802.1p Quality of Service - 8 queues per port - Queue Handling Strict Weighted Round Robin (WRR) - Bandwidth Control Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) - QoS based on: 802.1p Priority Queues DSCP ToS IPv6 Traffic Class TCP/UDP port Funcionalidades L3 - IP Interface Supports 1 interface - IPv6 Neighbor Discovery (ND) Lista de conrol de acceso (ACL) - Max. 50 access list - Max. 768 rules shared by IPv4, MAC and IPv6 - Each rule can only be associated with a single port - ACL based on 802.1p priority VLAN MAC address - Ether type - IP address - DSCP - Protocol type - TCP/UDP port number - IPv6 Traffic Class Seguridad - Broadcast/Multicast/Unicast Storm Control - D-Link Safeguard Engine - DHCP Server Screening - IP-MAC-Port Binding (Smart Binding) Supports 512 address binding entries ARP Inspection ARP + IP Inspection Supports DHCP Snooping - 802.1X Port-based Access Control - ARP Spoofing Prevention Max. 64 entries - Traffic Segmentation - SSH v2 - SSL Supports v1/v2/v3 - Port Security Supports up to 64 MAC addresses per port - Duplicate address detection AAA - 802.1X Authentication Supports local/RADIUS database Supports port-based access control Supports EAP, OTP, TLS, TTLS, PEAP - IPv6 RADIUS Server - Support MD5 authentication Gestión - Web-based GUI - D-Link Network Assistant Utility - Compact CLI - Telnet Server - TFTP Client - Configurable MDI/MDIX - SNMP Supports v1/v2c/v3 - SNMP Trap - Backup/Upgrade firmware - Smart Wizard - Upload/Download Configuration file - System Log Max. 500 log entries - BootP/DHCP Client - SNTP - ICMP v6 - IPv4/v6 Dual Stack - DHCP Auto Configuration - Time Setting SNTP - RMONv1 - Trusted Host
Físicas	- Consumo (Standby/Max.): 29.49W / 38.27W - Alimentación: 10 a 240 VAC, 50/60HZ fuente de alimentación interna - Dimensiones (An x Prof x Alt): 440 x 210 x 44 mm - Peso: 2.58 kg - Ventilación: Ventiladores inteligentes
Fecha Revisión	13-06-2022 por MPM

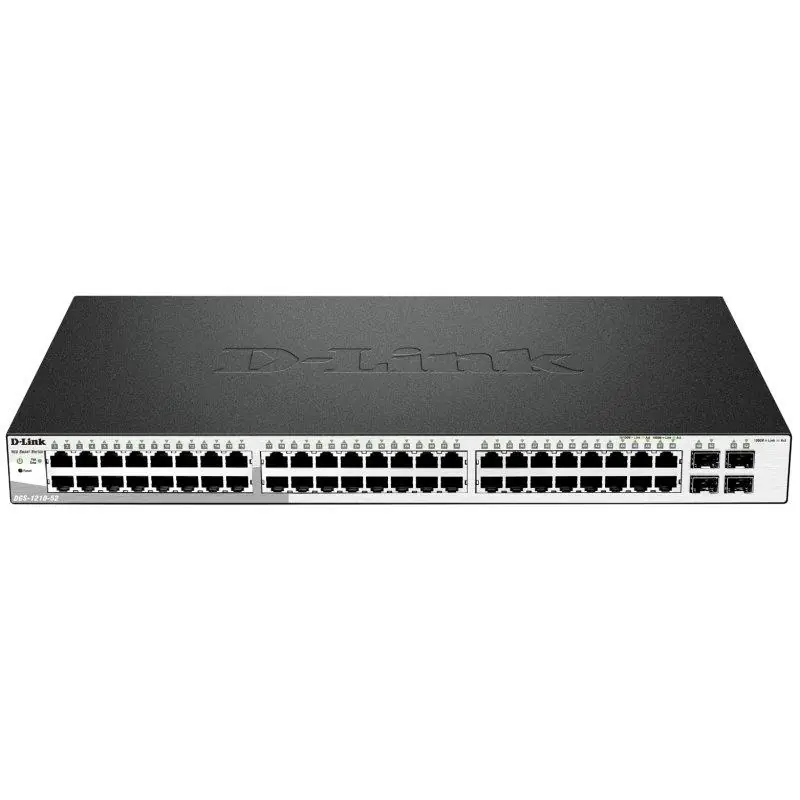

D-Link DGS-1210-52/E Switch 52xGB 4xSFP Combo
