Precio 21,95 €
Últimas unidades en stock

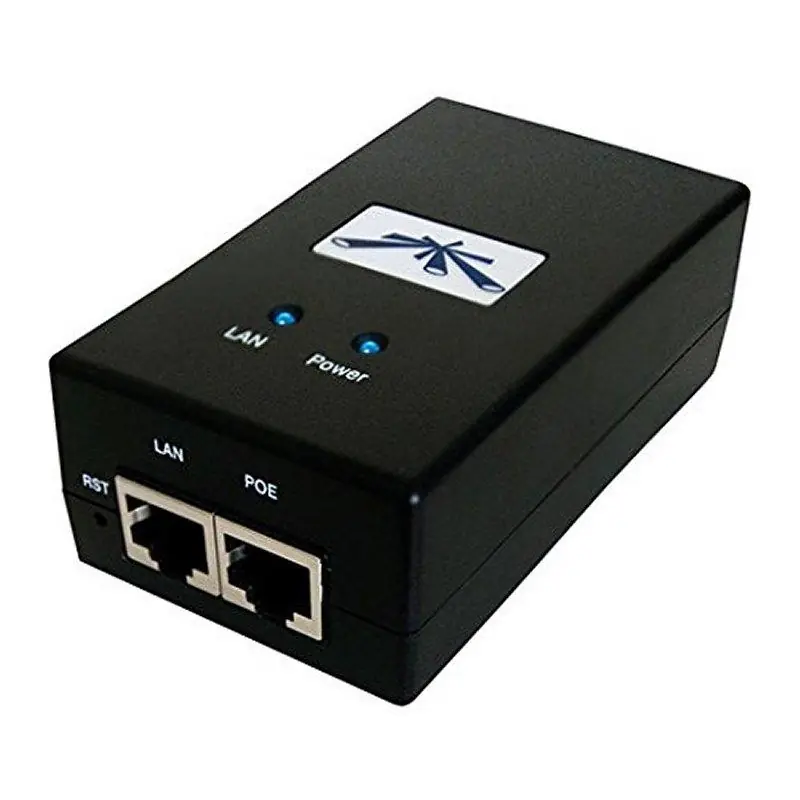

Marca | Ubiquiti |
Modelo | POE-48-24W-G |
Tipo | INYECTOR POE |
Características | - Output Voltage: 48VDC at 0.5A - Input Voltage: 90-260VAC at 47-63Hz - Input Current: 0.3A at 120VAC, 0.2A at 230VAC - Inrush Current: <15A peak at 120VAC, <30A peak - Efficiency: 70+% - Output Ripple: 1% Max - Switching Frequency: 200kHz - Line Regulation: +/- 0.5% - Load Regulation: +/- 1% - Surge Protection: Common Mode - Clamping Protection: 11V Data, 77.5V Power - Max Surge Discharge: 1200A (8/20uS) Power - Peak Pulse Current: 36A (10/1000uS Data) - Shunt Capacitance: <5pF data - Response Time: <1nS Interface - AC Connector: IEC-320 C6 - Data In/POE RJ45 Shielded Socket - 80% Current Indicator: Power LED will change color |
Otras características | - Temperatura funcionamiento: -10C to +60 C - Temperatura almacenamiento: -20 to +85 C - Humedad: -10C to +60 C - Medidas: (LXWXH) 85 x 55 x 33 (mm) - Peso 113,40 gramos Certificación Compliance UL, EN55022 (CISPR22) class B, Meets CE |
Folleto técnico | https://dl.ubnt.com/datasheets/poe/PoE_Adapters_DS.pdf |
Fecha Revisión | 08-04-2016 por MSB |
