Marca	Asus
Modelo	90MB18X0-M0EAY0
Plataforma	- ATX (30.5 cm x 24.4 cm)
Chipset	- Intel® B660 Chipset
CPU Soportados	- Admite procesadores Intel® Core™, Pentium Gold y Celeron de 12ª generación - Zócalo del procesador LGA1700
Memoria	- 4 x DIMM, Max. 128GB, DDR4 - 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory - Dual Channel Memory Architecture - Supports Intel® Extreme Memory Profile (XMP) - OptiMem
Slots Expansión	- 1 x PCIe 4.0 x16 slot - 1 x PCIe 3.0 x16 slot (supports x4 mode) - 2 x PCIe 3.0 x1 slots
Gráficos	- 1 x DisplayPort - 1 x D-Sub - 2 x HDMI
Puertos E/S, Conectores	Conectores Internos E/S - 1 x 4-pin CPU Fan header - 1 x 4-pin AIO Pump header - 3 x 4-pin Chassis Fan headers - 1 x 24-pin Main Power - 1 x 8-pin +12V Power - 3 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - 1 x USB 3.2 Gen 1 - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0 headers - 3 x Addressable Gen 2 headers - 2 x AURA RGB headers - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (AAFP) - 1 x M.2 slot (Key E) - 1 x S/PDIF Out header - 1 x SPI TPM header (14-1pin) - 1 x 20-3 pin System Panel header with Chassis intrude function - 1 x Thunderbolt™ header Panel E/S Trasero - 1 x USB 3.2 Gen 2x2 (1 x USB Type-C®) - 2 x USB 3.2 Gen 2 (2 x Type-A) - 1 x USB 3.2 Gen 1 (1 x Type-A) - 2 x USB 2.0 (2 x Type-A) - 1 x DisplayPort - 1 x D-Sub - 1 x HDMI® - 1 x Realtek 2.5Gb Ethernet - 3 x Audio jacks
Otras Características	Almacenamiento - 3 x M.2 slots - 4 x SATA 6Gb/s Audio - Realtek 7.1 Surround Sound High Definition Audio CODEC LAN - 1 x Realtek 2.5Gb Ethernet - Asus LANGuard USB - 1 x USB 3.2 Gen 2x2 (1 x USB Type-C®) - 2 x USB 3.2 Gen 2 (2 x Type-A) - 1 x USB 3.2 Gen 1 (1 x Type-A) - 2 x USB 2.0 (2 x Type-A) - 1 x USB 3.2 Gen 1 - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0 headers Sistema Operativo - Windows® 11 64-bit, Windows® 10 64-bit
Fecha Revisión	11-01-2022 por MSB

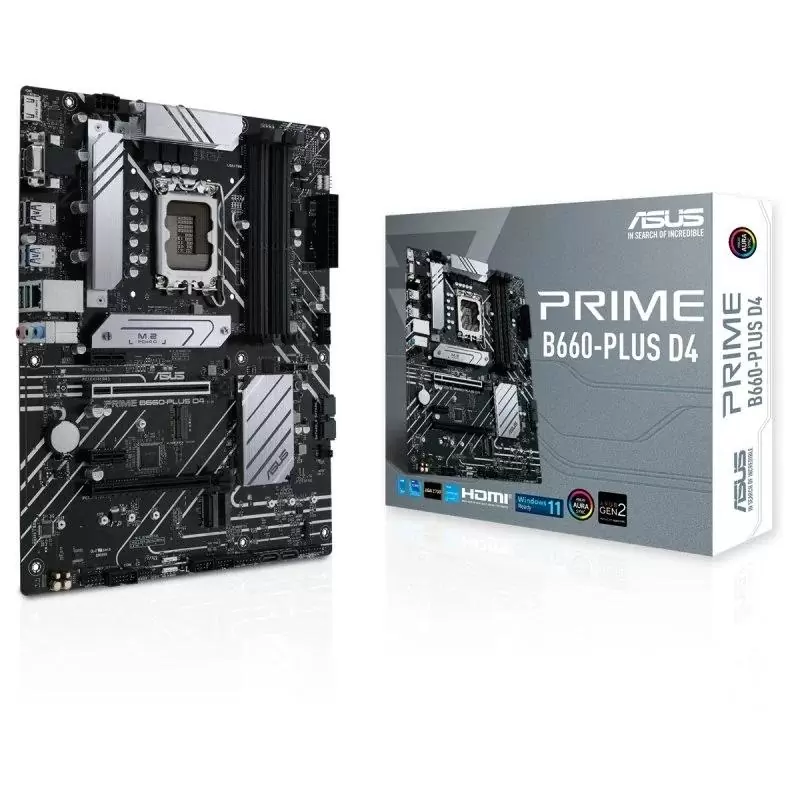

ASUS Placa Base PRIME B660-PLUS D4 ATX 1700
