Marca	Asus
Modelo	90MB1A00-M0EAY0
Plataforma	- mATX (23.4 cm x 20.3 cm)
Chipset	- Intel® H610 Chipset
CPU Soportados	- Admite procesadores Intel® Core™, Pentium Gold y Celeron de 12ª generación - Zócalo del procesador LGA1700
Memoria	- 2 x DIMM, Max. 64GB, DDR4 DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* - Dual Channel Memory Architecture - Supports Intel® Extreme Memory Profile (XMP)
Slots Expansión	- 1 x PCIe 4.0 x16 slot - 1 x PCIe 3.0 x1 slots
Gráficos	- 1 x D-Sub - 1 x HDMI
Puertos E/S, Conectores	Conectores Internos E/S - 1 x 4-pin CPU Fan header - 1 x 4-pin Chassis Fan header - 1 x 24-pin Main Power - 1 x 8-pin +12V Power - 1 x M.2 slot (Key M) - 4 x SATA 6Gb/s ports - 1 x USB 3.2 Gen 1 header - 1 x USB 2.0 header - 1 x RGB header - 1 x Clear CMOS header - 1 x Front Panel Audio header (AAFP) - 1 x LPT header - 1 x S/PDIF Out header - 1 x Speaker header - 1 x SPI TPM header (14-1pin) - 1 x 10-1 pin System Panel header Panel E/S Trasero - 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x D-Sub - 1 x HDMI® - 1 x Realtek 1Gb Ethernet - 3 x Audio jacks - 1 x COM - 1 x PS/2 Keyboard/Mouse
Otras Características	Almacenamiento - 1 x M.2 slots - 4 x SATA 6Gb/s Audio - Realtek 7.1 Surround Sound High Definition Audio CODEC LAN - 1 x Realtek 1Gb Ethernet USB - 2 x USB 3.2 Gen 1 (2 x Type-A) - 4 x USB 2.0 (2 x Type-A? - 1 x USB 3.2 Gen 1 header - 1 x USB 2.0 headers Sistema Operativo - Windows® 11 64-bit, Windows® 10 64-bit
Fecha Revisión	10-01-2022 por MSB

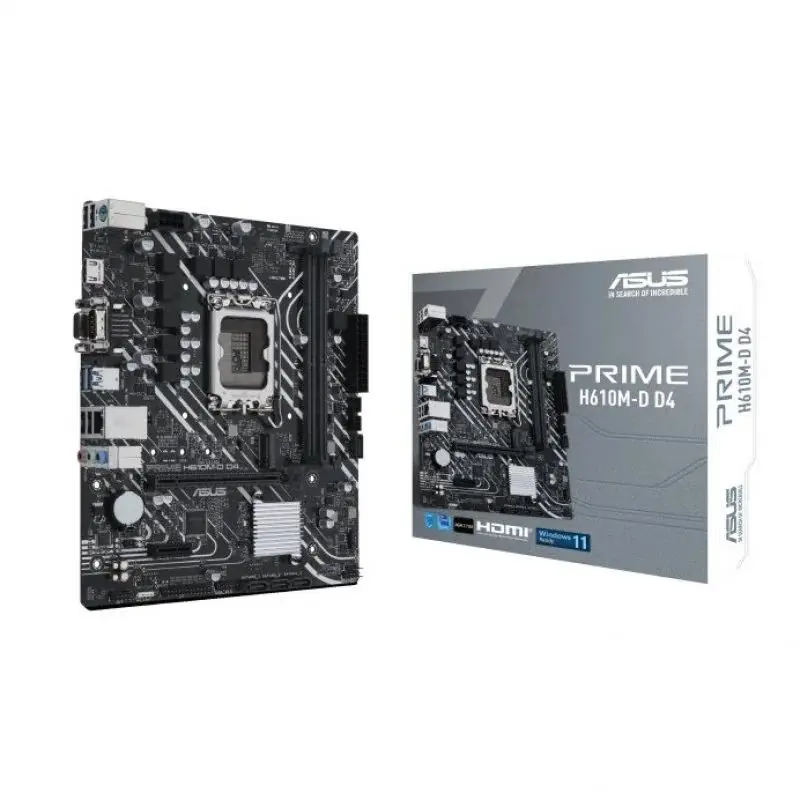

ASUS Placa Base PRIME H610M-D D4 mATX 1700
